EXAMPLE PLANS / BEVERLY HILLS

Beverly Hills phased traffic control plan

A seven-sheet Public Ready example showing a vicinity map, sign legend, phased work areas, lane shifts, pedestrian routing, and temporary parking notes in Beverly Hills.

DRAFTED BY PUBLIC READY

What this example shows.

  • Phased work areas at intersecting streets
  • Lane-shift tapers, buffer areas, and sign placement
  • Pedestrian routing and temporary parking notes

Seven sheets supplied from the example plan set.

Customer names, companies, contacts, project-address details, project dates, drawing IDs, and engineer stamps or signatures have been removed from these copies. Public Ready branding and drafting credits remain. Historical project notes and dimensions apply only to the original example and may not reflect current agency requirements.

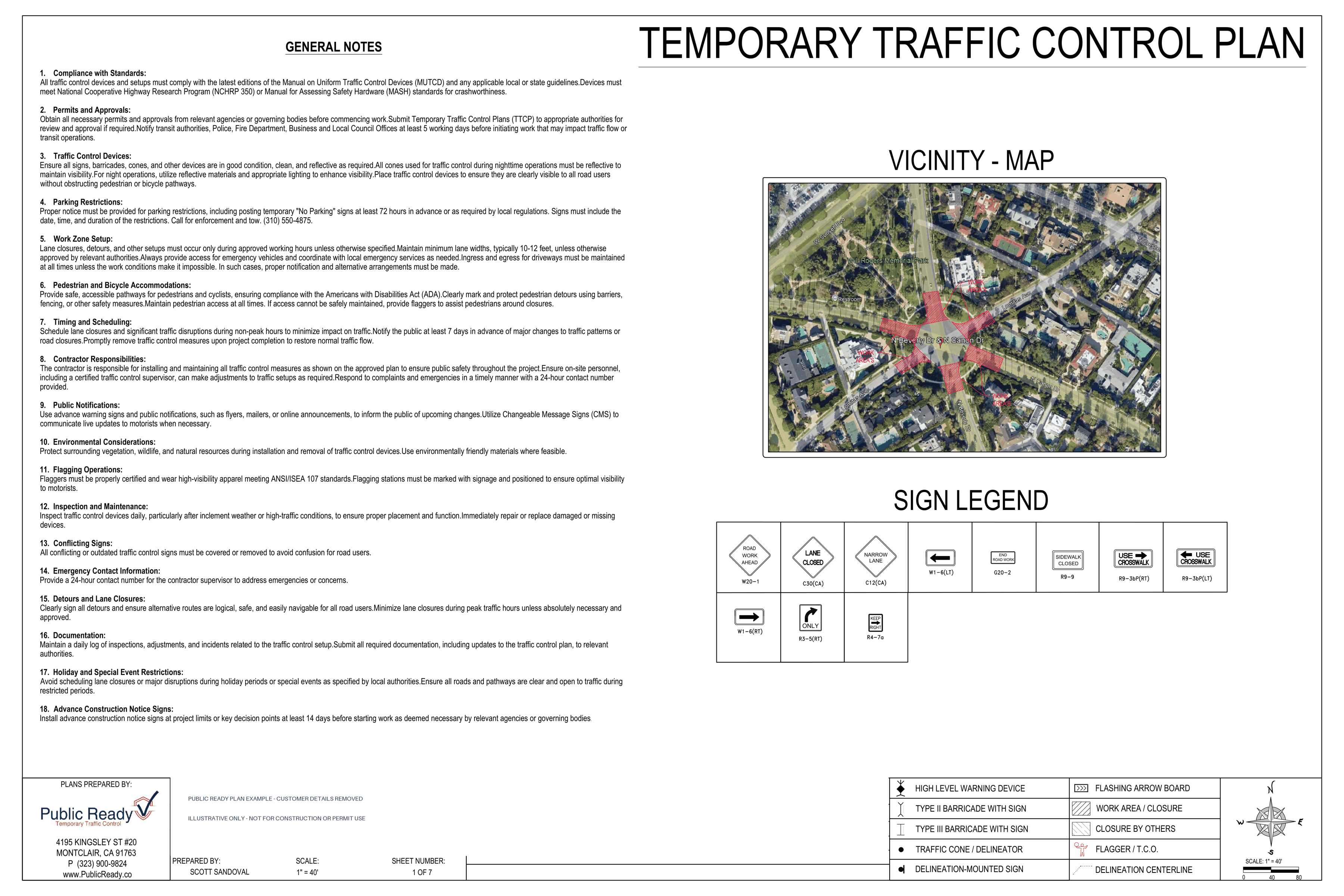

General notes, vicinity map, and sign legend

Open full-size image
Beverly Hills phased traffic control plan drafted by Public Ready - General notes, vicinity map, and sign legend; customer details removed
General notes, vicinity map, and sign legend. Drafted by Public Ready. Redacted illustrative copy.
Read sheet 1 description

Sheet overview

Original sheet 1 of 7 introduces the traffic control plan for the intersection of North Beverly Drive, North Canon Drive, and Lomitas Avenue in Beverly Hills. General notes fill the left side; a vicinity map and sign legend are on the right.

Layout and relationships

The vicinity map places the intersection beside Will Rogers Memorial Park, south of West Sunset Boulevard. Red hatching marks work areas on the approaches around the central intersection. North Beverly Drive and North Canon Drive meet the two arms of Lomitas Avenue.

The sign legend identifies W20-1 (Road Work Ahead), C30(CA) (Lane Closed), C12(CA) (Narrow Lane), W1-6(LT) and W1-6(RT) directional arrows, G20-2 (End Road Work), R9-9 (Sidewalk Closed), R9-3bP(RT) and R9-3bP(LT) (Use Crosswalk with a directional arrow), R3-5(RT) (right turn only), and R4-7a (Keep Right).

The device legend distinguishes high-level warning devices, Type II and Type III barricades with signs, traffic cones or delineators, delineation-mounted signs, a flashing arrow board, a work-area hatch, a different hatch for closure by others, a flagger or traffic control officer, and a delineation centerline. A north arrow and a graphic scale are at lower right. The title block states a scale of 1 inch equals 40 feet and identifies Public Ready as the plan preparer.

Notes on the historical example

These notes describe the redacted drawing. They apply to the original example and may not reflect current agency requirements. They are not instructions for a new project.

  • Historical note 1, Compliance with Standards: traffic control devices and setups are to comply with the latest MUTCD and applicable local or state guidelines. The drawing refers to NCHRP 350 or MASH crashworthiness standards.
  • Historical note 2, Permits and Approvals: obtain necessary agency permits and approvals before work, submit temporary traffic control plans for review where required, and notify transit, police, fire, business, and local council offices at least five working days before work affecting traffic or transit.
  • Historical note 3, Traffic Control Devices: keep devices clean, in good condition, and reflective as required. Nighttime cones are to be reflective; use reflective materials and appropriate lighting, and avoid obstructing pedestrian or bicycle pathways.
  • Historical note 4, Parking Restrictions: provide notice and temporary No Parking signs at least 72 hours in advance or as required locally, with dates, times, and duration. The drawing lists (310) 550-4875 for enforcement and tow.
  • Historical note 5, Work Zone Setup: use approved work hours; the note describes typical minimum lane widths of 10 to 12 feet unless otherwise approved. Maintain emergency access and driveway access, or arrange notification and alternatives where driveway access cannot be maintained.
  • Historical note 6, Pedestrian and Bicycle Accommodations: provide accessible pathways and marked, protected pedestrian detours. Maintain pedestrian access; the drawing calls for flaggers to assist pedestrians around closures when access cannot be safely maintained.
  • Historical note 7, Timing and Scheduling: schedule significant disruptions in non-peak hours, notify the public at least seven days before major changes or closures, and promptly remove controls when work is complete.
  • Historical note 8, Contractor Responsibilities: the contractor installs and maintains the controls shown on the approved plan, provides on-site personnel including a certified traffic control supervisor, and responds to complaints and emergencies with a 24-hour contact number.
  • Historical note 9, Public Notifications: use advance warning signs and public notices, with changeable message signs for live updates where necessary.
  • Historical note 10, Environmental Considerations: protect vegetation, wildlife, and natural resources, and use environmentally friendly materials where feasible.
  • Historical note 11, Flagging Operations: flaggers are to be properly certified, wear high-visibility apparel meeting ANSI/ISEA 107, and work from signed positions visible to motorists.
  • Historical note 12, Inspection and Maintenance: inspect devices daily and after inclement weather or high traffic; immediately repair or replace damaged or missing devices.
  • Historical note 13, Conflicting Signs: cover or remove conflicting or outdated traffic control signs.
  • Historical note 14, Emergency Contact Information: provide a 24-hour contractor-supervisor contact number.
  • Historical note 15, Detours and Lane Closures: clearly sign detours, provide navigable alternative routes, and minimize peak-hour closures unless necessary and approved.
  • Historical note 16, Documentation: keep daily inspection, adjustment, and incident logs, and submit required documentation and plan updates to the authorities.
  • Historical note 17, Holiday and Special Event Restrictions: follow local restrictions on scheduling closures and keep roads and pathways open during restricted periods.
  • Historical note 18, Advance Construction Notice Signs: the drawing calls for notice signs at project limits or key decision points at least 14 days before work, as deemed necessary by the relevant agency or governing body.

Phased traffic control layout - original sheet 2 of 7

Open full-size image
Beverly Hills phased traffic control plan drafted by Public Ready - Phased traffic control layout - original sheet 2 of 7; customer details removed
Phased traffic control layout - original sheet 2 of 7. Drafted by Public Ready. Redacted illustrative copy.
Read sheet 2 description

Sheet overview

Original sheet 2 of 7 shows curbside work areas on North Beverly Drive on both sides of its intersection with North Canon Drive and Lomitas Avenue. An inset assigns Phase 1 to the work areas on the left approach and Phase 2 to those on the right approach as drawn.

Layout and relationships

Pairs of hatched work areas occupy opposite curb edges of North Beverly Drive, leaving one traffic lane in each direction through the middle. Each remaining lane is labeled 12 feet minimum. Cones outline the work and shift the lanes around it. The work reaches the corner returns; existing curbs, gutters, driveways, and red-curb segments are labeled.

Advance warning callouts show repeated 100-foot sign intervals, a 65-foot shift taper, a 50-foot buffer, and 25-foot maximum cone spacing. C12(CA) narrow-lane and C30(CA) lane-closed signs accompany W20-1 road-work signs, W1-6(LT) arrows, and G20-2 end-work signs.

R9-9 sidewalk-closed and R9-3bP left- or right-arrow Use Crosswalk signs are shown at the affected corners. Temporary No Parking signs are called for on both sides. The inset states that shaded work areas are to be completed one side of the intersection at a time. All streets in this layout are labeled 25 mph.

Notes on the historical example

These notes describe the redacted drawing. They apply to the original example and may not reflect current agency requirements. They are not instructions for a new project.

  • The sheet calls for contacting property owners 72 hours before temporary driveway closure and impacted owners 72 hours before work.
  • The contractor is to install and remove traffic control daily.
  • The historical note says the work-site traffic control plan is not a permit, that transportation acceptance does not itself approve the depicted street, lane, or sidewalk closure, and that the appropriate permit is to be obtained before implementation. The original note names the Bureau of Street Service or Bureau of Engineering.
  • The sheet says not to install this plan on the same day as another traffic control plan for this worksite.

Phased traffic control layout - original sheet 3 of 7

Open full-size image
Beverly Hills phased traffic control plan drafted by Public Ready - Phased traffic control layout - original sheet 3 of 7; customer details removed
Phased traffic control layout - original sheet 3 of 7. Drafted by Public Ready. Redacted illustrative copy.
Read sheet 3 description

Sheet overview

Original sheet 3 of 7 applies the curbside work arrangement to Lomitas Avenue on both sides of the North Beverly Drive and North Canon Drive intersection. The inset labels the left approach Phase 1 and the right approach Phase 2 as drawn.

Layout and relationships

Hatched curbside work areas extend toward the corner returns on both edges of each Lomitas Avenue approach. One lane in each direction remains between the work areas; each is labeled 12 feet minimum. Cone lines guide traffic into and out of the narrowed central passage.

The approaches show 100-foot warning-sign intervals, 65-foot shift tapers, 50-foot buffers, and 25-foot maximum cone spacing. The drawing identifies W20-1, C12(CA), C30(CA), W1-6(LT), and G20-2 signs. Alleys and driveways appear beyond the work areas.

At the affected corners, R9-9 sidewalk-closed signs and R9-3bP Use Crosswalk arrows direct pedestrians away from the closure. Temporary No Parking signs are specified on both sides. Red-curb segments and existing curb and gutter are labeled. The inset directs completion of shaded work areas one side of the intersection at a time. Street labels show 25 mph.

Notes on the historical example

These notes describe the redacted drawing. They apply to the original example and may not reflect current agency requirements. They are not instructions for a new project.

  • The historical sheet notes require 72-hour notice to property owners for temporary driveway closure, daily installation and removal of traffic control, and 72-hour notice to impacted property owners before work.
  • The plan-not-a-permit note distinguishes transportation acceptance from closure approval and directs the contractor to obtain the appropriate permit before implementation; the original names the Bureau of Street Service or Bureau of Engineering.
  • Do not install this plan on the same day as another traffic control plan for the worksite, according to the original note.

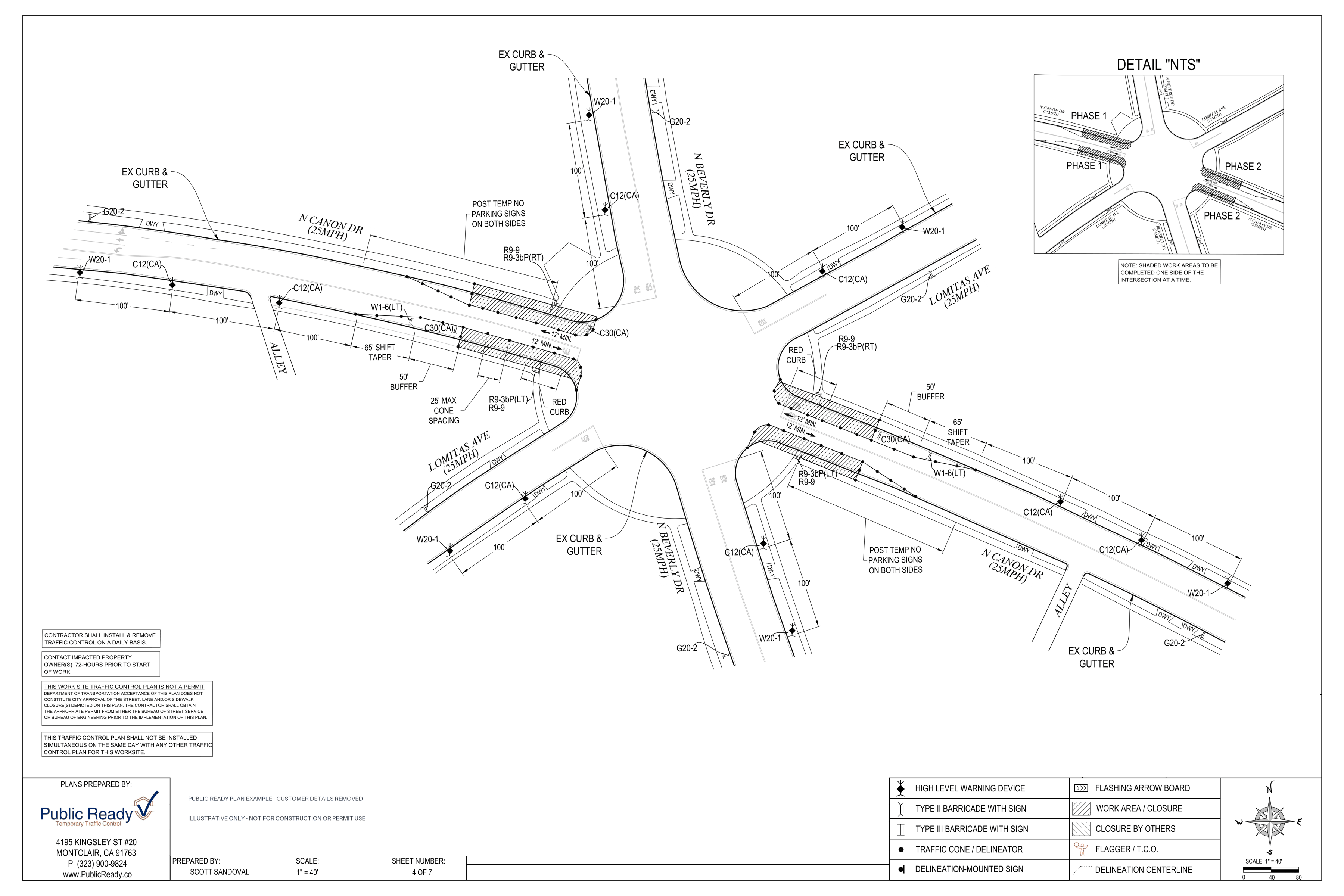

Phased traffic control layout - original sheet 4 of 7

Open full-size image
Beverly Hills phased traffic control plan drafted by Public Ready - Phased traffic control layout - original sheet 4 of 7; customer details removed
Phased traffic control layout - original sheet 4 of 7. Drafted by Public Ready. Redacted illustrative copy.
Read sheet 4 description

Sheet overview

Original sheet 4 of 7 shows curbside work areas on North Canon Drive, on the left and right approaches of its intersection with North Beverly Drive and Lomitas Avenue. The inset marks the left approach Phase 1 and the right approach Phase 2 as drawn.

Layout and relationships

Hatching occupies both curb edges of each North Canon Drive approach, including the corner returns. Cones form two remaining central lanes, one in each direction, labeled 12 feet minimum. Existing driveways, alleys, curb and gutter, and red-curb segments are identified.

Warning-device layouts include 100-foot sign intervals, 65-foot shift tapers, 50-foot buffers, and 25-foot maximum cone spacing. Labels identify W20-1 road-work, C12(CA) narrow-lane, C30(CA) lane-closed, W1-6(LT) arrow, and G20-2 end-work signs.

R9-9 and R9-3bP left- or right-arrow signs mark affected pedestrian approaches. Temporary No Parking signs are specified on both sides. A note under the inset says to complete shaded work areas one side of the intersection at a time. Street labels show 25 mph.

Notes on the historical example

These notes describe the redacted drawing. They apply to the original example and may not reflect current agency requirements. They are not instructions for a new project.

  • Historical notes call for daily installation and removal of traffic control and contacting impacted property owners 72 hours before work.
  • The sheet says the traffic control plan is not a permit; transportation acceptance does not itself approve the depicted closures. The original note names the Bureau of Street Service or Bureau of Engineering as permit sources before implementation.
  • The sheet prohibits simultaneous installation with another traffic control plan for the same worksite on the same day.

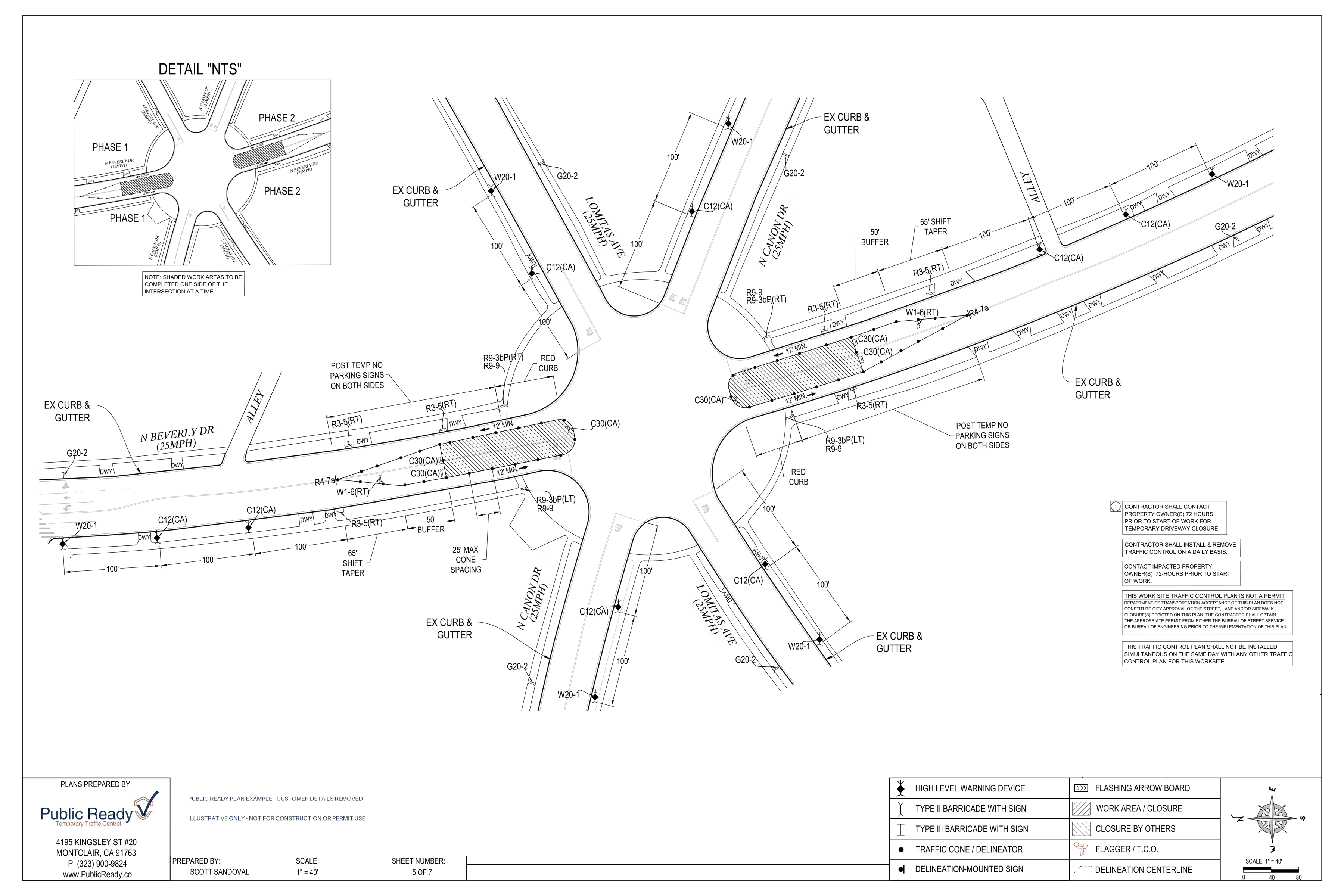

Phased traffic control layout - original sheet 5 of 7

Open full-size image
Beverly Hills phased traffic control plan drafted by Public Ready - Phased traffic control layout - original sheet 5 of 7; customer details removed
Phased traffic control layout - original sheet 5 of 7. Drafted by Public Ready. Redacted illustrative copy.
Read sheet 5 description

Sheet overview

Original sheet 5 of 7 shows central work areas on North Beverly Drive, contrasting with the curbside arrangement on sheet 2. The inset assigns Phase 1 to the left approach and Phase 2 to the right approach as drawn.

Layout and relationships

A hatched work area occupies the middle of each North Beverly Drive approach near the intersection. Cone lines split traffic around either side of the work. The lanes on both sides are labeled 12 feet minimum. W1-6(RT) arrows and R4-7a Keep Right signs mark the leading ends; R3-5(RT) right-turn-only signs are also shown at the driveways.

The layout retains 100-foot warning-sign intervals, 65-foot shift tapers, 50-foot buffers, and 25-foot maximum cone spacing. W20-1, C12(CA), C30(CA), and G20-2 labels identify advance, narrowing, closure, and end-work signs.

Sidewalk-closed R9-9 signs and left- or right-arrow R9-3bP Use Crosswalk signs are placed at the corners. Temporary No Parking is specified on both sides. Red curb, driveways, alleys, and existing curb and gutter remain identified. The inset calls for one side of the intersection to be completed at a time. Streets are labeled 25 mph.

Notes on the historical example

These notes describe the redacted drawing. They apply to the original example and may not reflect current agency requirements. They are not instructions for a new project.

  • The historical sheet notes call for 72-hour notice before temporary driveway closure, daily installation and removal of traffic control, and 72-hour notice to impacted property owners before work.
  • The plan-not-a-permit note distinguishes transportation acceptance from closure authorization and names the Bureau of Street Service or Bureau of Engineering for appropriate permitting before implementation.
  • The sheet says not to install this plan simultaneously with another traffic control plan for the worksite on the same day.

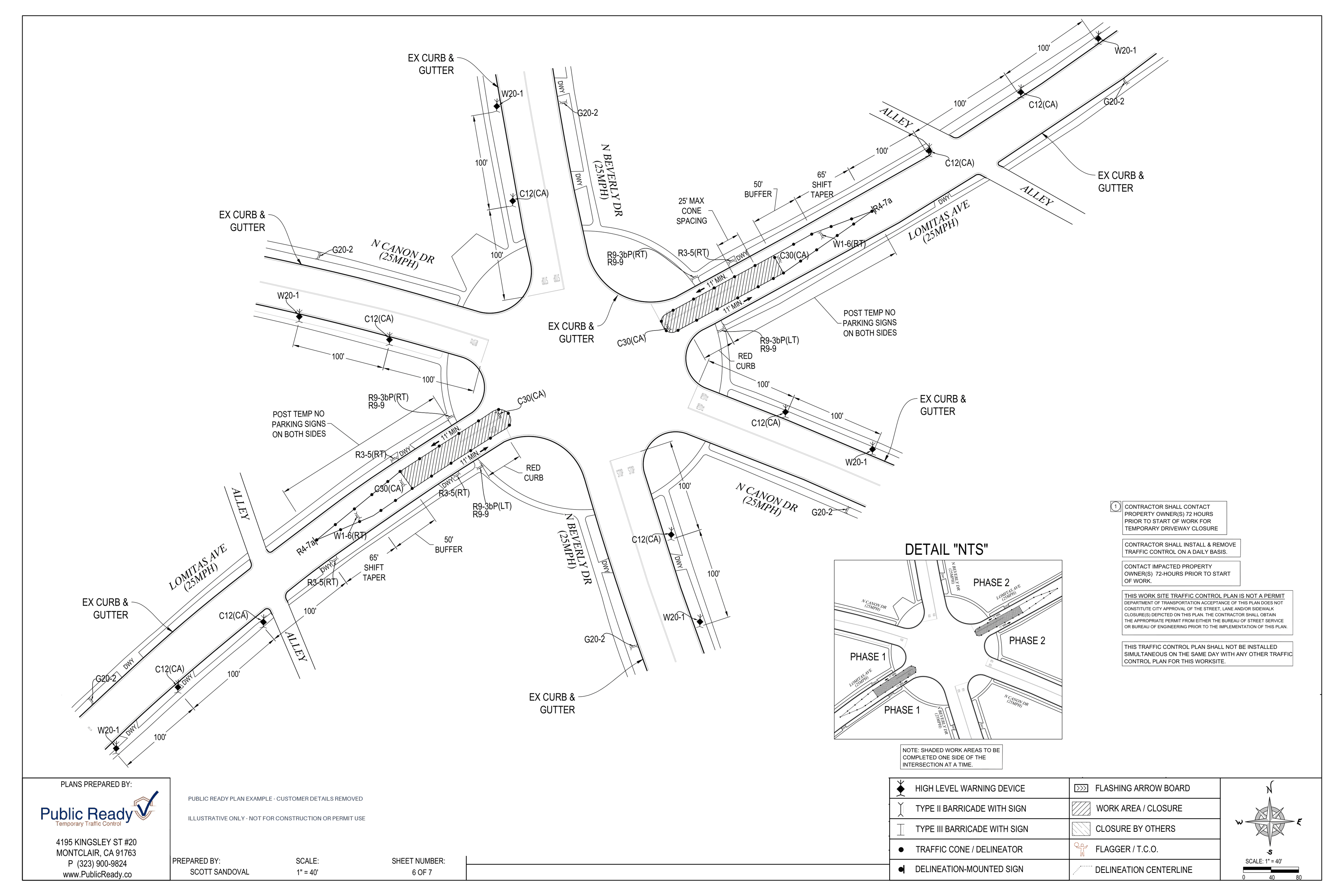

Phased traffic control layout - original sheet 6 of 7

Open full-size image
Beverly Hills phased traffic control plan drafted by Public Ready - Phased traffic control layout - original sheet 6 of 7; customer details removed
Phased traffic control layout - original sheet 6 of 7. Drafted by Public Ready. Redacted illustrative copy.
Read sheet 6 description

Sheet overview

Original sheet 6 of 7 shows central work areas on Lomitas Avenue, one on each approach to the North Beverly Drive and North Canon Drive intersection. The inset labels the left approach Phase 1 and the right approach Phase 2 as drawn.

Layout and relationships

Hatched work occupies the middle of the Lomitas Avenue approaches, with one lane passing on each side. Unlike the 12-foot labels on sheet 3, the two passing lanes beside each work area are labeled 11 feet minimum. Cone lines, W1-6(RT) directional arrows, and R4-7a Keep Right signs guide traffic around the work. R3-5(RT) right-turn-only signs are shown near driveways.

Advance warning includes 100-foot sign intervals, a 65-foot shift taper, a 50-foot buffer, and 25-foot maximum cone spacing. The drawing labels W20-1, C12(CA), C30(CA), and G20-2 signs on the approaches.

The corner callouts include R9-9 sidewalk-closed signs and R9-3bP Use Crosswalk arrows. Temporary No Parking signs are specified on both sides. Existing red curb, alleys, driveways, and curb and gutter are shown. The inset directs work one side of the intersection at a time. Street labels show 25 mph.

Notes on the historical example

These notes describe the redacted drawing. They apply to the original example and may not reflect current agency requirements. They are not instructions for a new project.

  • Historical notes call for 72-hour notification before temporary driveway closure, daily installation and removal of traffic control, and contacting impacted property owners 72 hours before work.
  • The traffic control plan is not a permit, and transportation acceptance does not itself approve the depicted closures. The original permit note names the Bureau of Street Service or Bureau of Engineering.
  • The sheet directs that this plan not be installed simultaneously with another traffic control plan for the same worksite on the same day.

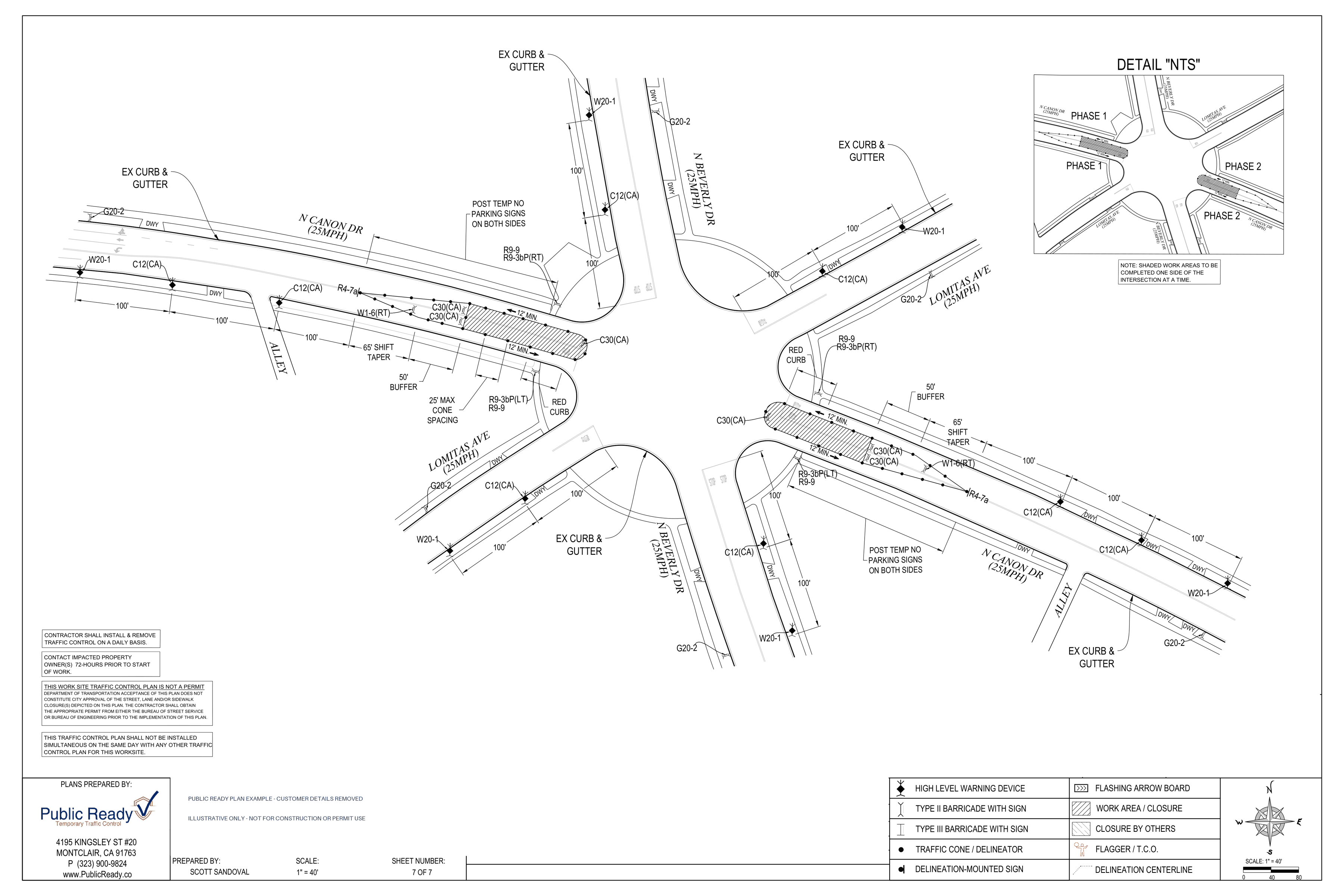

Phased traffic control layout - original sheet 7 of 7

Open full-size image
Beverly Hills phased traffic control plan drafted by Public Ready - Phased traffic control layout - original sheet 7 of 7; customer details removed
Phased traffic control layout - original sheet 7 of 7. Drafted by Public Ready. Redacted illustrative copy.
Read sheet 7 description

Sheet overview

Original sheet 7 of 7 shows central work areas on North Canon Drive on both approaches to the intersection with North Beverly Drive and Lomitas Avenue. The inset identifies the left approach as Phase 1 and the right approach as Phase 2 as drawn.

Layout and relationships

Each hatched work area occupies the center of a North Canon Drive approach near the intersection. Cone lines split traffic to either side; the remaining lanes are labeled 12 feet minimum. W1-6(RT) arrows and R4-7a Keep Right signs appear at the approach ends, with C30(CA) lane-closed signs at the work area.

The layout shows 100-foot warning-sign intervals, 65-foot shift tapers, 50-foot buffers, and 25-foot maximum cone spacing. W20-1, C12(CA), and G20-2 sign labels appear beyond the work. Driveways, alleys, existing curb and gutter, and red-curb segments remain identified.

R9-9 sidewalk-closed signs and R9-3bP Use Crosswalk arrows mark the affected pedestrian corners. Temporary No Parking is specified on both sides. The inset note says to complete shaded work areas one side of the intersection at a time. Street labels show 25 mph.

Notes on the historical example

These notes describe the redacted drawing. They apply to the original example and may not reflect current agency requirements. They are not instructions for a new project.

  • Historical notes call for daily installation and removal of traffic control and contacting impacted property owners 72 hours before work.
  • The sheet says that the traffic control plan is not a permit and that transportation acceptance does not constitute closure approval. The original note names the Bureau of Street Service or Bureau of Engineering for permitting before implementation.
  • Do not install this plan simultaneously with another traffic control plan for this worksite on the same day, according to the original note.
